Pro-Finish® Dust Collectors & Bag House

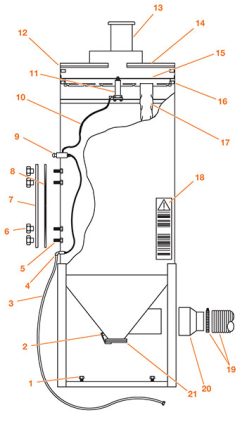

SKU #	Product Name	Description	Drawing Reference No.	ID (in)	OD (in)	Size	Size (in)	Get a Quote
553892	Bolt, leveling, 3/8" -16 x 2" (4 required)		1			3/8 in -16 x 2 in		Quote
509581	Latch and keeper (requires welding)		2					Quote
523161	Hose with fittings, 1/4" x 16', dust collector		3			1/4 in x 16 ft		Quote
521081	Adapter, 1/4" tube x 1/4" MPT (inlet)		4			1/4 in tube x 1/4 in MPT		Quote
551852	Bolt, 3/8" -16 x 1 1/4" (6 required)		5			3/8 in -16 x 1 1/4 in		Quote
510461	Knob, 3/8" -16 (6 required)		6			3/8 in -16		Quote
760851	Access door, dust collector		7					Quote
525711	Gasket, access door, 5/8" x 5/8", 103" section	Essential Component to prevent downtime	8			5/8 in x 5/8 in, 103 in section		Quote
525061	Gasket, 5/8" x 5/8" (specify length)		8				5/8 x 5/8	Quote
517221	Valve, push-button, 1/8" NPT & #10 - 32,"3P"	Essential Component to prevent downtime	9			1/8 in NPT & #10 - 32		Quote
521101	Barbed fitting, 1/4" tube x #10 - 32, 2 per assembly		9			1/4 in tube x #10 - 32		Quote
520432	Adapter, 1/4" tube x 1/8" MPT, 90º (for air cylinder)		9			1/4 in tube x 1/8 in MPT		Quote
510541	Tubing, 1/4" OD (8' required)		10		1/4			Quote
515981	Air cylinder, standard collector and auto shaker	Essential Component to prevent downtime	11					Quote
515771	Air cylinder, auto-pneumatic bag shaker only.		11					Quote
523551	Gasket, top plate, 1/8" x 1/4" (8' for DCM-80A; 12' for others)	Essential Component to prevent downtime	12			1/8 in x 1/4 in		Quote
760841	Top plate, DCM-80A		14					Quote
760901	Top plate, DCM-200, DCM-200A & DCM-200B		14					Quote
760861	Bag-rack weldment (DCM-80A)		15					Quote
760921	Bag-rack weldment (DCM-200A)		15					Quote
523541	RuBBer bumper (8 required)		16					Quote
515521	Dust bag, cotton sateen (12 required for DCM-80A & DCR-80, 30 required for DCM-200 & DCM-200A)	Recommended spare part - Consumable wear item	17					Quote
516181	SuperSmooth dust bag, standard for DCM-200B - requiring 30 bags, handles severe dust loading in all DCM collectors	Recommended spare part - Consumable wear item	17					Quote
567405	Decal, Instruction/Warning		18					Quote
761801	Adapter, 10 1/8" ID x 6" OD, DCM-200		20	10 1/8	6			Quote
524351	Gasket, clean-out door, dust collector	Essential Component to prevent downtime	21					Quote
564305	Decal, Empire logo							Quote
564301	Decal, orange dot strip							Quote
564476	Paint, 6-oz. aerosol, beige							Quote
140390	Electric shaker for all bag-house collectors. (Options)	Automatic bag shaker cleans bags thoroughly every time the system is turned off.						Quote
140686	Pneumatic shaker for DCM-80A. (Options)	Automatic bag shaker cleans bags thoroughly every time the system is turned off.						Quote
140684	Pneumatic shaker for DCM-200, DCM-200A & DCM-200B. (Options)	Automatic bag shaker cleans bags thoroughly every time the system is turned off.						Quote
140215	HEPA filter captures very fine particles.. (Options)							Quote
140221	HEPA filter, pressure differential gauge assembly informs operator regarding filter cleanliness. (Options)							Quote
140170	Kit for DCM-80A. (Options)	Leg extension kit raises collector so larger collection drum can be placed underneath.						Quote
140180	Kit for DCM-200, DCM-200A & DCM-200B. (Options)	Leg extension kit raises collector so larger collection drum can be placed underneath.						Quote
140155	Lid assembly for 55 gallon drum attaches securely to clean-out door. (Options)							Quote
140398	Manometer keeps operator informed regarding bag cleanliness.. (Options)							Quote
140361	Attenuator/damper for DCM-80A & DCM-200. (Options)	Sound attenuator reduces noise in the work place.						Quote
140769	Attenuator/damper for DCM-200A. (Options)	Sound attenuator reduces noise in the work place.						Quote
140680	Attenuator/damper for DCM-200B. (Options)	Sound attenuator reduces noise in the work place.						Quote
Dust Collector Blower & blower motors	Blower & blower motors		13					Quote
Dust Collector Ducting & adapters	Ducting & adapters		19					Quote
